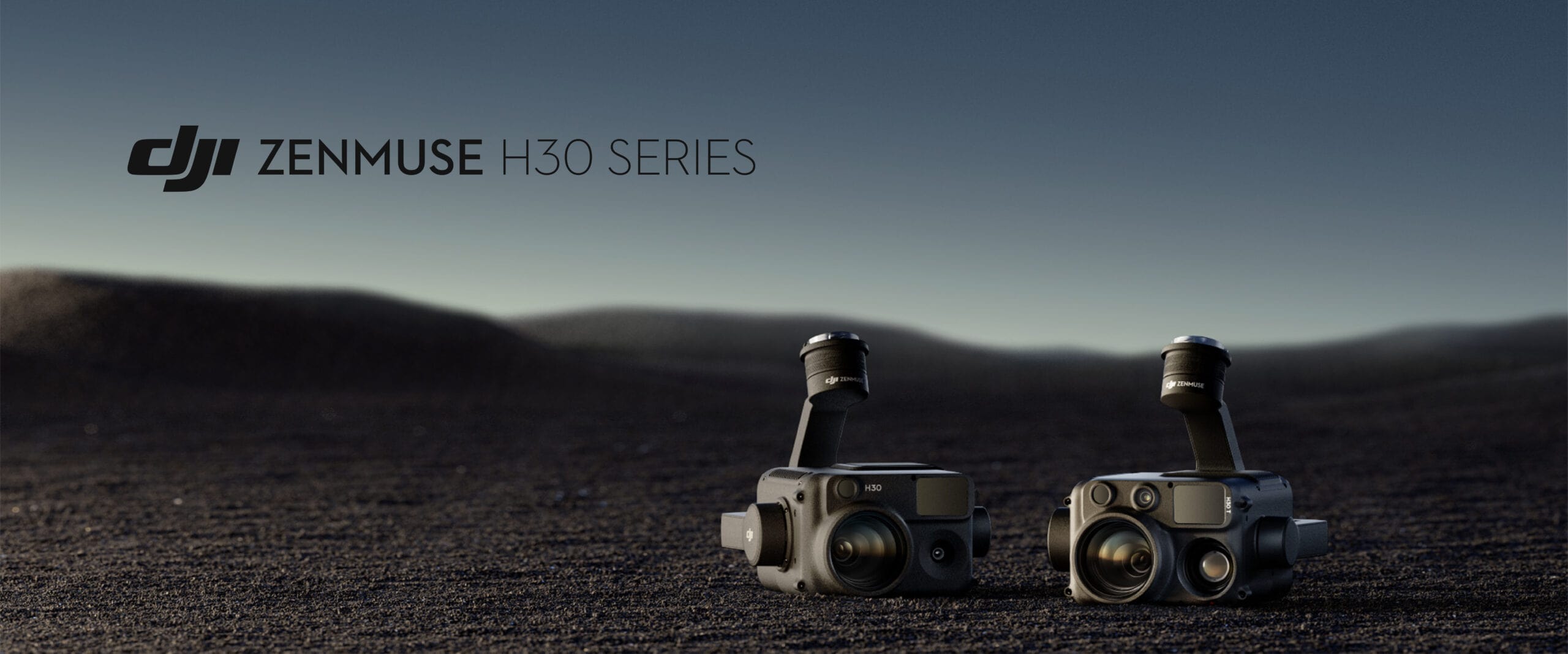

Zenmuse H30 Series: The Multifunctional Flagship

The Zenmuse H30 Series is a multifunctional flagship integrating five core modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser rangefinder, and NIR assistance. Utilizing advanced intelligent algorithms, it revolutionizes perception and imaging standards, overcoming visibility limitations both day and night. This makes it ideally suited for various operations, including public safety, energy infrastructure inspection, water and forest resource protection.

Up to 34× Optical Zoom and 400× Digital Zoom

The Zenmuse H30 Series features a high-quality 40-megapixel zoom camera supporting up to 34× optical zoom and an impressive 400× digital zoom. Compared to the previous generation, it not only observes objects at greater distances but also captures more detail.

More Stable Image from the Zoom Camera

With DJI’s latest image stabilization algorithm, the Zenmuse H30 Series effectively reduces shake in telephoto shots, providing stable and clear images for detailed inspections of power lines.

Max 3000 m Laser Rangefinder

The laser rangefinder has a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position of objects from 3 m to 3000 m, including linear distance from the camera, height, and GPS coordinates.

Support for Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode under low-light conditions, improving live viewing and recording quality. This ensures efficiency and accuracy during nighttime operations, allowing continuous work from day to night.

Support for Black-and-White Night Vision and NIR Illumination

In Night Scene mode, the zoom camera of the Zenmuse H30 Series supports IR illumination for enhanced infrared imagery and NIR lighting. It switches live streaming to black-and-white images, removing the IR filter and enhancing contrast between light and dark areas, which aids in object detection. When NIR additional light is activated, the zoom camera receives extra NIR illumination, making it particularly useful for nighttime security surveillance and search-and-rescue operations.

1280×1024 Infrared Resolution

The infrared thermal camera features a resolution of 1280×1024, which is four times greater than the previous generation, with up to 32× digital zoom. This allows for both scene-wide viewing and zooming in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates the UHR (Ultra-High Resolution) Infrared Imaging feature, ensuring clarity in infrared images.

High-Resolution Mode for Precise Observation

The Zenmuse H30T supports three infrared enhancement modes: High Gain for more accurate temperature measurement, Low Gain for a wider temperature measurement range, and the new High-Resolution Mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Simultaneous Zoom for Visual and IR Cameras

The zoom camera and infrared thermal camera of the Zenmuse H30T support Link Zoom, allowing operators to simultaneously zoom in on visible and thermal images and maintain the same perspective. This side-by-side comparison of image details helps to quickly locate objects, enhancing efficiency and reducing effort.

Temperature Measurement from -20° to 1600° C (-4° to 2912° F)

With the installation of an infrared filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), three times greater than the previous generation. This is especially useful for firefighting and high-temperature operations, as it allows for more effective detection of temperature changes and quick identification of hot spots, improving rescue efficiency.

Smart Capture for Enhanced Imaging

In Smart Capture mode, the zoom and wide-angle cameras of the Zenmuse H30 Series automatically assess ambient light brightness and dynamic range, applying intelligent imaging algorithms. This ensures photos with natural transitions between light and shadow and rich details, even under high dynamic conditions, bright light, or low illumination.

Electronic Haze Removal

In foggy or high-humidity conditions, the zoom camera of the Zenmuse H30 Series uses the new Electronic Haze Removal function to enhance image clarity. It offers low and high levels of haze removal to suit various working conditions and requirements.

IP54 Dust and Water Resistance

With an IP54 rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions. It is designed to function in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting the demands of various weather conditions.

Pre-Recording Support

All cameras in the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can save video recordings for 10, 15, or 30 seconds before the main recording starts, providing a more comprehensive report and capturing key information that might otherwise be quickly lost.

Media and Transmission Encryption with One-Time Log Clearing

The Security Code function allows for encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures secure transmission of data between the controller and the aircraft. One-time log clearing is also supported to prevent information leakage.

Cloud Information Synchronization for Ground and Air Collaboration

DJI Enterprise platforms with the Zenmuse H30 Series are suitable for applications in various industries such as public safety, power generation, oil and gas, and water and forest resource protection.

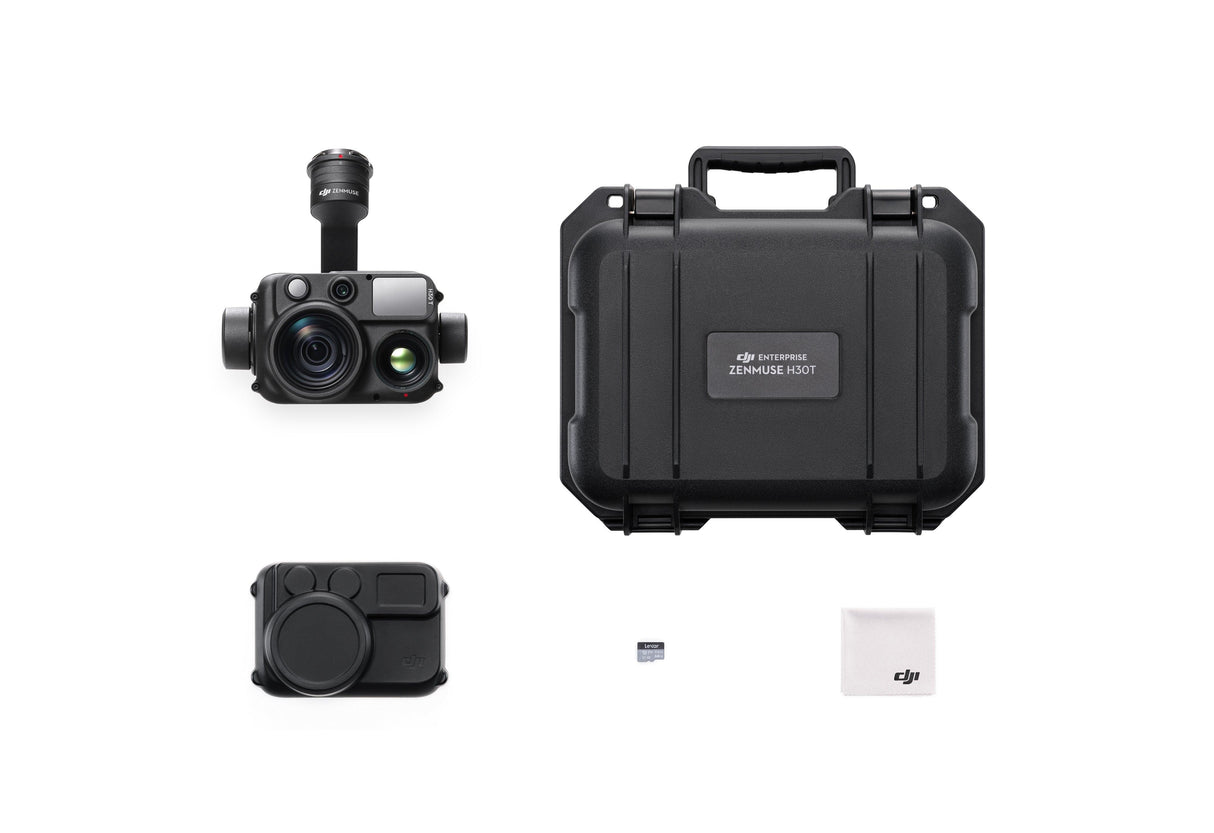

Zenmuse H30T: Integrated Thermal Imaging

Zenmuse H30T is the ideal solution for tasks requiring in-depth analysis using thermal imaging technology. It combines high-quality visual imaging and thermal analysis, making it indispensable in the most challenging environments.

Key Advantages of Zenmuse H30T:

1. Thermal Camera: The 640×512 pixel resolution thermal camera allows detection of thermal anomalies not visible to regular optics. This is crucial for tasks that require quick problem identification, such as heat leaks, equipment overheating, or finding people in poor visibility conditions.

2. Multitasking: Zenmuse H30T integrates the capabilities of three different cameras: a primary visual, wide-angle, and thermal camera. This enables a complete spectrum of data about the monitored object, improving work accuracy and efficiency.

3. Wide Range of Applications: The camera is ideal for search and rescue operations, firefighting, industrial inspections, and environmental and energy infrastructure monitoring. It is indispensable where a comprehensive view of the situation is needed.

Zenmuse H30T Applications:

• Search and Rescue Operations: The camera allows for quick detection of people and animals in poor visibility conditions thanks to the thermal imaging feature.

• Firefighting: Thermal analysis helps identify hidden fire sources and assess fire spread.

• Industrial Inspections: Identifying hot spots and overheating in equipment and electrical systems helps prevent accidents in time.

• Environmental Monitoring: The thermal camera allows tracking temperature changes across large areas, which is useful for environmental research and control.

Comparison in Real-World Conditions

• Solar Panel Inspection:

  • H30: Efficiently detects physical damage to panels.
  • H30T: Additionally detects overheating zones and potential failures using thermal imaging.

• Search and Rescue Operations:

  • H30: Provides clear visual images of the area.
  • H30T: Finds people and objects through thermal signatures even in challenging conditions.

• Power Line Inspection:

  • H30: Analyzes the condition of wires and attachments.
  • H30T: Identifies overheating points and potential problems in systems.

Conclusion

Zenmuse H30T is a powerful tool for those needing to integrate thermal analysis with visual data. It offers unique capabilities that significantly expand the range of applications, making it the ideal choice for complex tasks across various industries.

Zenmuse H30 remains an excellent choice for tasks requiring only visual inspection due to its lightweight and high-quality optics. However, if your projects require deeper analysis and complex solutions, Zenmuse H30T will provide the necessary tools to achieve success.
