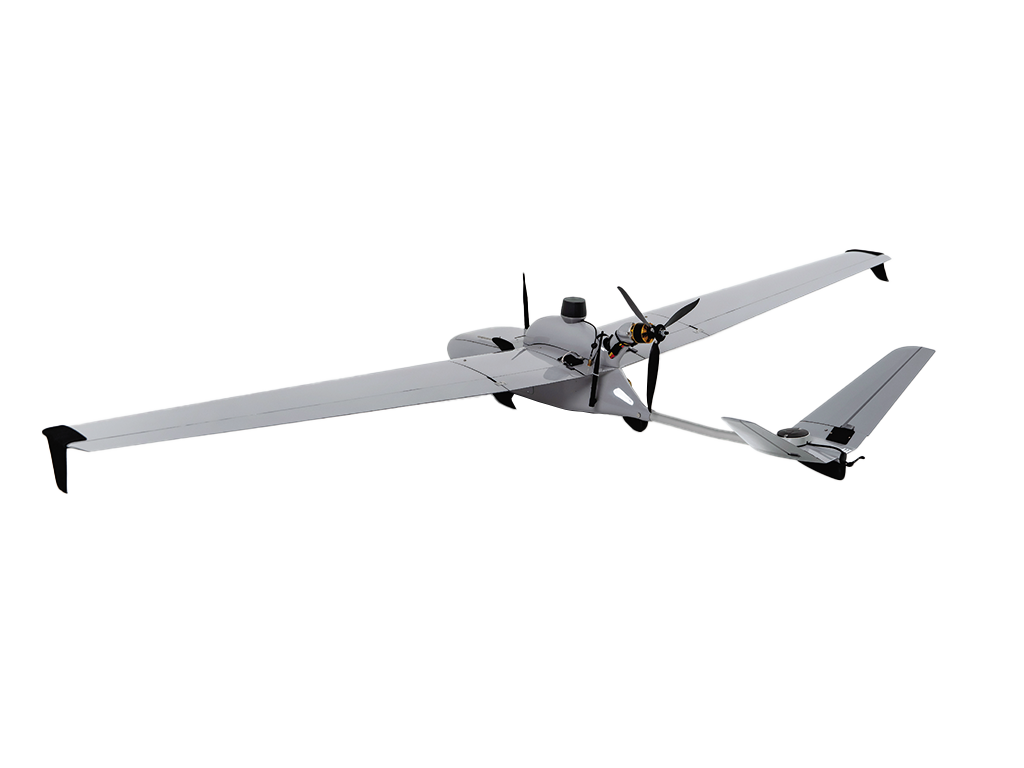

ABRIS Cetus – a powerful and versatile unmanned aerial vehicle (UAV) designed for complex tasks such as aerial photography, laser scanning, monitoring, and other remote sensing applications. With enhanced performance, high reliability, and modularity, this UAV is perfectly suited for long missions under diverse conditions.

Key Features:

• Maximum takeoff weight 10 kg: Increased payload capacity for mounting various equipment.
• Maximum payload 1.5 kg: Supports high-quality cameras, LiDARs, multispectral sensors, and other equipment.
• Maximum flight duration 3 hours: Enables long missions without frequent landings.
• Flight range up to 200 km: Autonomous missions with extended range (40 km with control).
• Operating temperature range -15°C to +45°C: Reliable in various climatic conditions.
• Catapult launch: Ensures reliable takeoff in any conditions.
• Preparation time 20–25 minutes: Quick setup for mission execution.

Advantages:

• Long range: Ideal for tasks requiring large area coverage.
• Data precision: High-quality mapping and stable imagery.
• Modular design: Supports a variety of sensors and cameras.
• Durable construction: Composite materials provide reliability and longevity.
• Automation: Fully automated flight process – from takeoff to landing.
• Compatibility: Allows the use of the same sensors with other models in the series.
• Versatility: Capable of performing tasks across various fields, including agriculture, construction, and ecology.

Specifications:

• Wingspan: 2.94 m
• Length: 1.2 m
• Operating speed range: 65–110 km/h
• Operating altitude range: 70–1500 m
• Maximum flight distance: 200 km
• Wind tolerance: Up to 12 m/s
• Transport dimensions: 120×35×35 cm

Compatible Sensors and Payloads:

• GNSS L1 EPS Kit-STAR: 10 Hz GPS/GLONASS/SBAS, PPK, NovAtel based.
• GNSS L1/L2 EPS Kit-7: 20 Hz GPS/GLONASS/SBAS, 777 channels, PPK, NovAtel based.
• GNSS jamming protected: Multifrequency, multisystem PPK NovAtel based.
• RGB Camera set SONY LR1: 61 MP full-frame, E-mount interchangeable lens system.
• Lens Options: Zeiss Ventum 21 mm (fixed focus), Zeiss Sonnar 35 mm, Zeiss Loxia 21, 35, or 50 mm (manual focus).
• LiDAR YellowScan Mapper+: with Applanix GNSS/INS system.
• Micasense Altum-PT: Multispectral camera (blue, green, red, red edge, thermal).
• Video Camera set NextVision X80: 1280×720 resolution, zoom 40x/2x.
• Video Camera set NextVision Night Hawk UZ: Visible 1280×720, thermal, zoom 40x/2x.
• Satellite GPS tracker: Advanced tracking solution for mission monitoring.

Typical Use Cases:

• Mapping large areas with high resolution (40 sq. km per flight).
• Laser scanning up to 8 sq. km per flight.
• Infrastructure inspection, including pipelines and power lines.
• Environmental monitoring for agriculture and ecology.
• Resource assessment and planning for mining operations.
• Forest surveying for health and growth analysis.
• Construction control and monitoring of infrastructure projects.
• Disaster management and monitoring in affected areas.
• Patrolling and ensuring security in remote zones.
• Coastal analysis and environmental modeling.

Cetus – the perfect tool for professional UAV missions, delivering reliability, high performance, and a wide range of capabilities!
