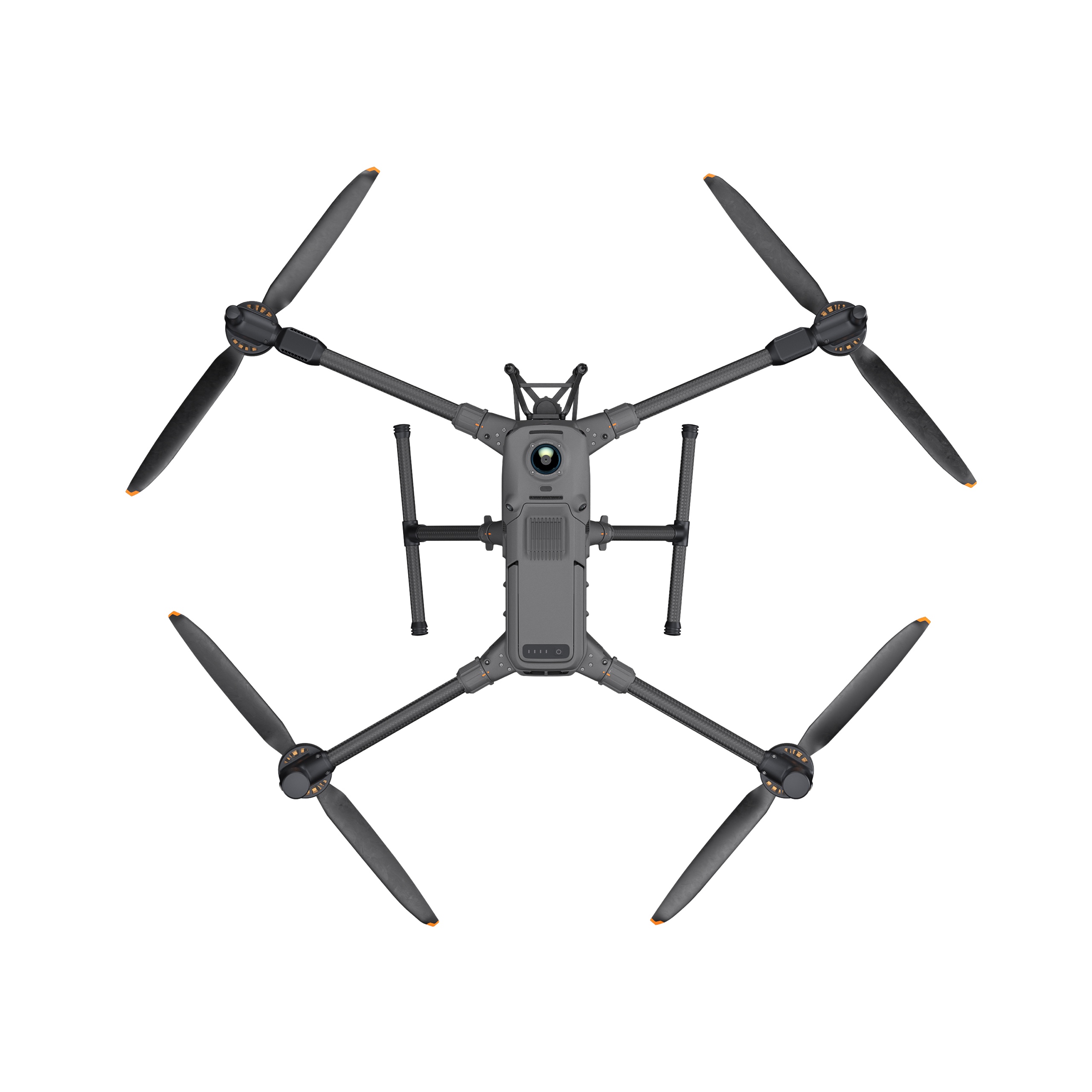

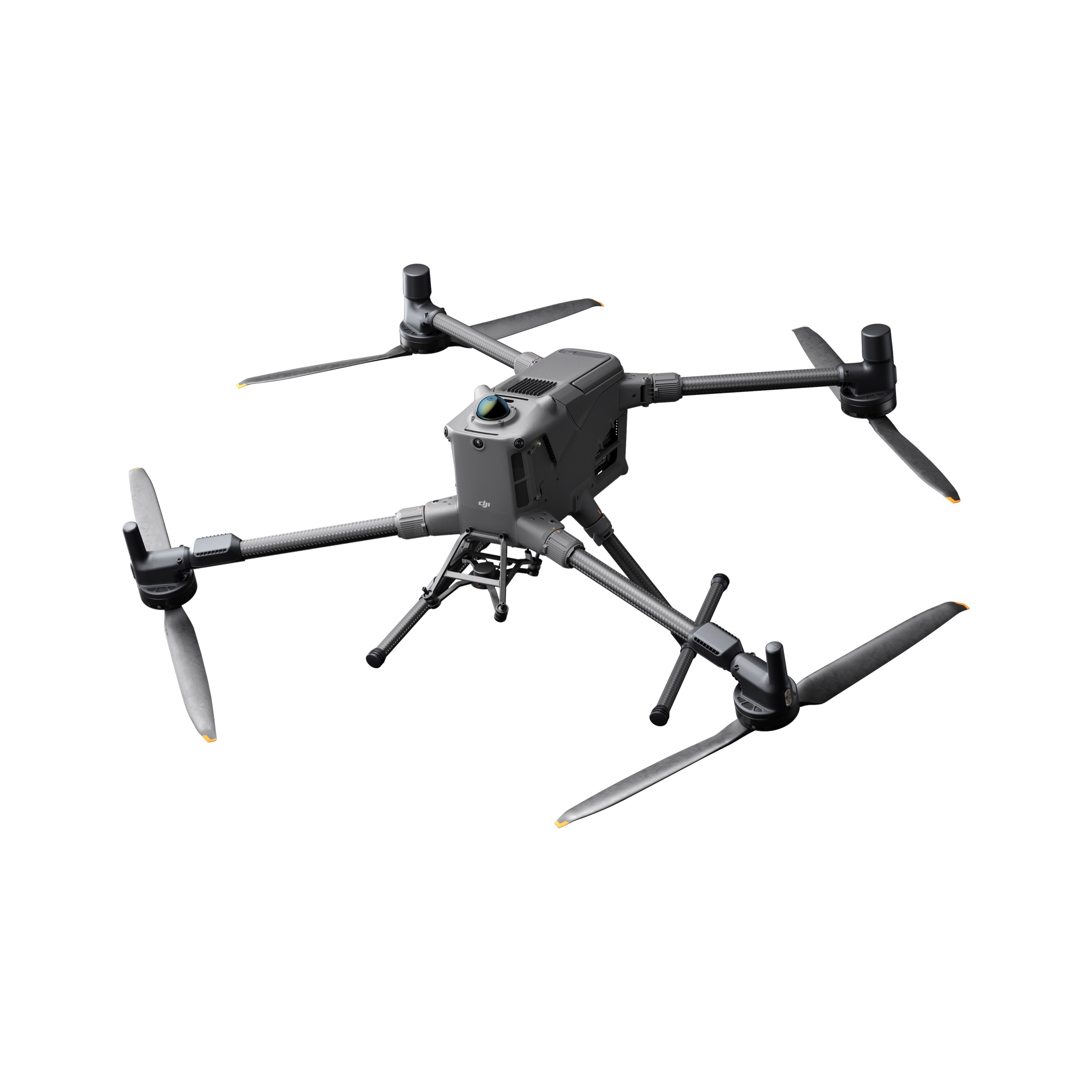

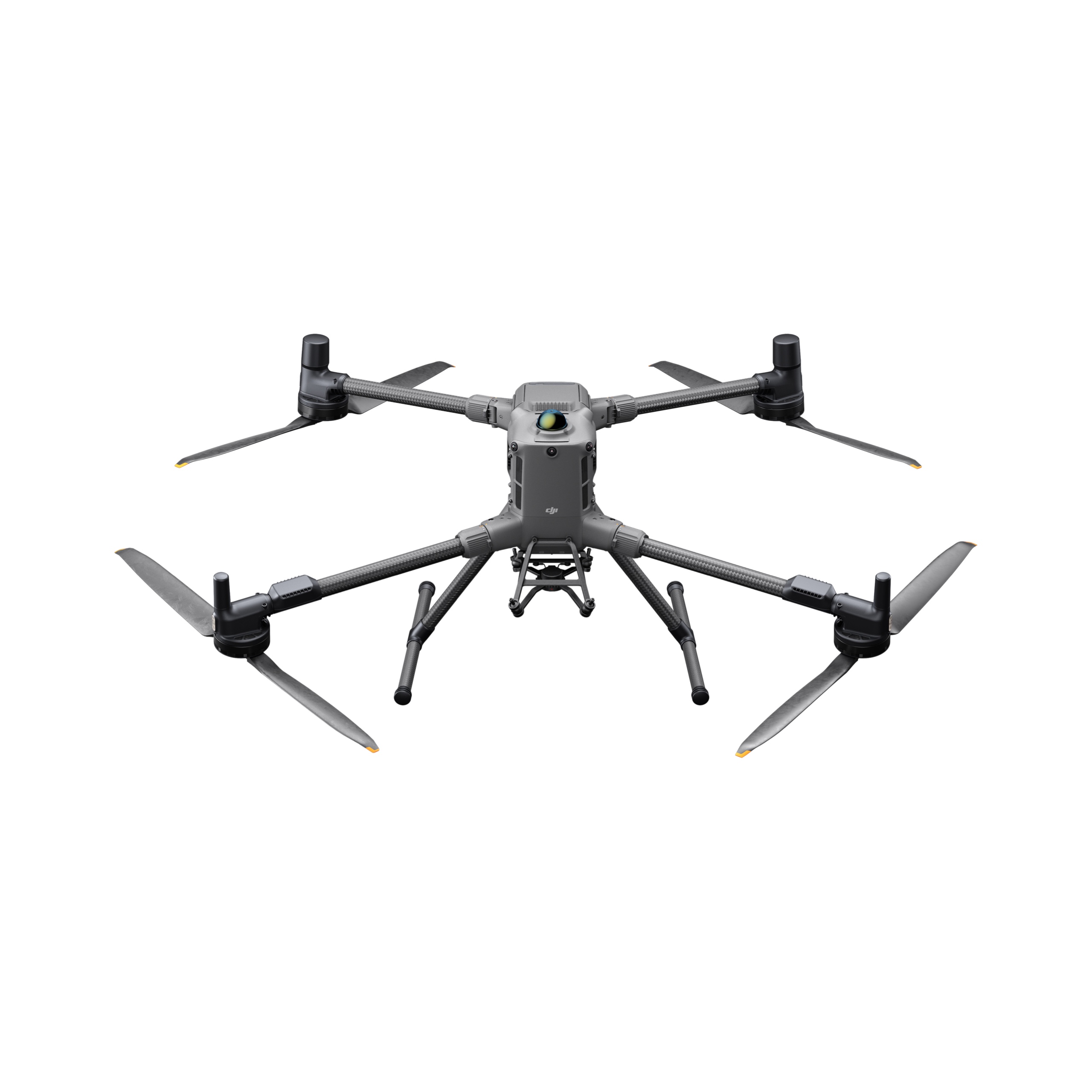

DJI Matrice 400 is the new generation of DJI’s industrial platform, replacing the Matrice 350 RTK. The drone features a redesigned power system: now it uses a single TB100 intelligent battery instead of two, reducing pre-flight preparation time, simplifying maintenance, and supporting hot-swapping with backup power.

Key Specifications

Flight time: up to 59 minutes in forward flight and up to 53 minutes in hover (with H30T payload).

Transmission system: O4 Enterprise Enhanced with a range of up to 40 km (FCC) / 20 km (CE) and Airborne Relay mode.

Protection rating: IP55, operating temperature from –20 °C to +50 °C.

Payload capacity: up to 6 kg, with the ability to mount up to 7 payloads via 4 E-Port V2 connectors.

Obstacle sensing: omnidirectional fisheye cameras, rotating horizontal LiDAR, bottom 3D infrared sensor, and mmWave radar.

Remote controller: DJI RC Plus 2 Enterprise Enhanced with 4G support (via adapter).

Compatible Payloads and Equipment

• Zenmuse H30 / H30T — multisensor cameras with optical zoom, thermal imaging, laser rangefinder, and night vision mode.
• Zenmuse L2 — next-generation LiDAR scanner for 3D modeling and surveying.
• Zenmuse P1 — full-frame camera for aerial photography and mapping.
• Spotlight S1, Loudspeaker V1, Manifold 3 computing module — expand the drone’s capabilities for specialized missions.
• SDK support — E-Port V2, Payload SDK, and Cloud API for integrating third-party modules.

Intelligent Features

• AR Projection and Power Line AR for infrastructure inspection tasks.
• Autonomous missions along pre-defined routes with precise georeferencing.
• Smart Track mode — automatic object tracking.
• Ship take-off and landing with a maximum vessel speed of 10 knots and wind up to 5 m/s.
• Dual control and integration with DJI FlightHub 2 and DJI Pilot 2.

Applications

Energy and infrastructure: inspection of power lines, substations, bridges, and wind turbines.

Surveying and mapping: creation of 3D maps, topographic surveys, and terrain change monitoring.

Search and rescue: locating missing persons, wildfire monitoring, and operation in low-visibility conditions.

Construction: inspection of high-rise structures, quality control, and project compliance.

Agriculture: monitoring crop health, identifying stress zones.

DJI Matrice 400 combines long endurance, advanced sensor systems, and broad payload compatibility, making it a versatile tool for professional inspections, mapping, and rescue missions.
